Reduction

Manual Reduction

Terminal command reduce_REF_M is available on the conda environments mr_reduction-qa and mr_reduction. Running this command starts a simple web application to configure reduction of a single experiment.

Developers or power users running their own conda environment from environment.yml, and having installed the package in editable mode, can invoke the webapp by running script src/mr_autoreduce/reduce_REF_M_run.sh

> reduce_REF_M
**********************************************
* POINT YOUR BROWSER TO http://127.0.0.1:5000/
**********************************************
[2024-07-09 11:20:06 -0400] [278702] [INFO] Starting gunicorn 21.2.0
[2024-07-09 11:20:06 -0400] [278702] [INFO] Listening at: http://0.0.0.0:5000 (278702)
[2024-07-09 11:20:06 -0400] [278702] [INFO] Using worker: sync
[2024-07-09 11:20:06 -0400] [278707] [INFO] Booting worker with pid: 278707

As the printout suggest, open a tab in your browser and enter address http://127.0.0.1:5000/. This webapp allows one to reduce a single run by entering the Nexus events file, entering the directory storing the reduced files, and selecting reduction options. Hovering over the bold-face text items will show explanatory tooltips.

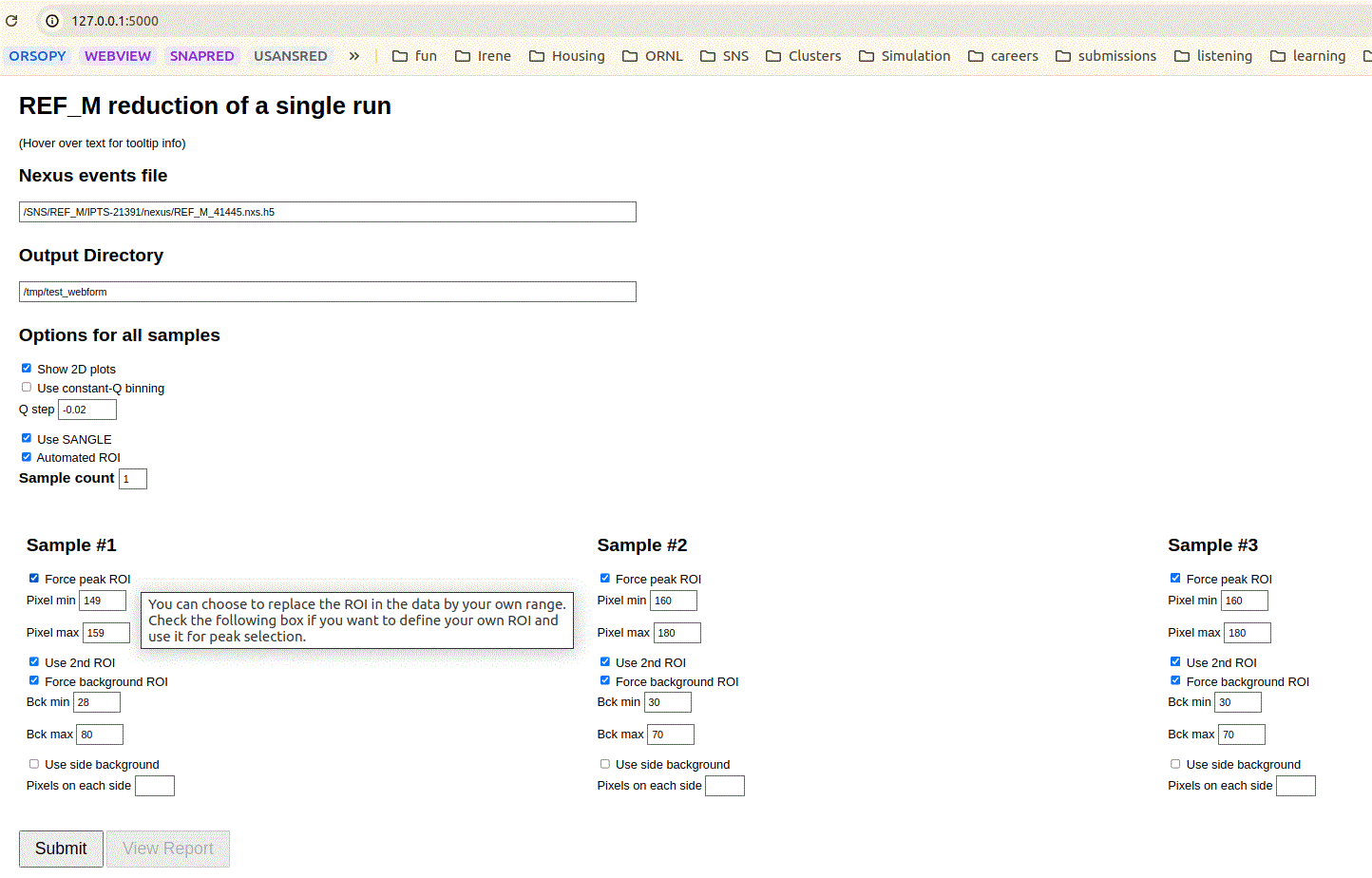

Configuration for manual reduction.

Configuration for manual reduction.

Click on the Submit button to start reduction. The reduction typically takes one to two minutes during which time both Submit and View Report buttons became disabled. After reduction is finished, click on View Report for a summary of the results.

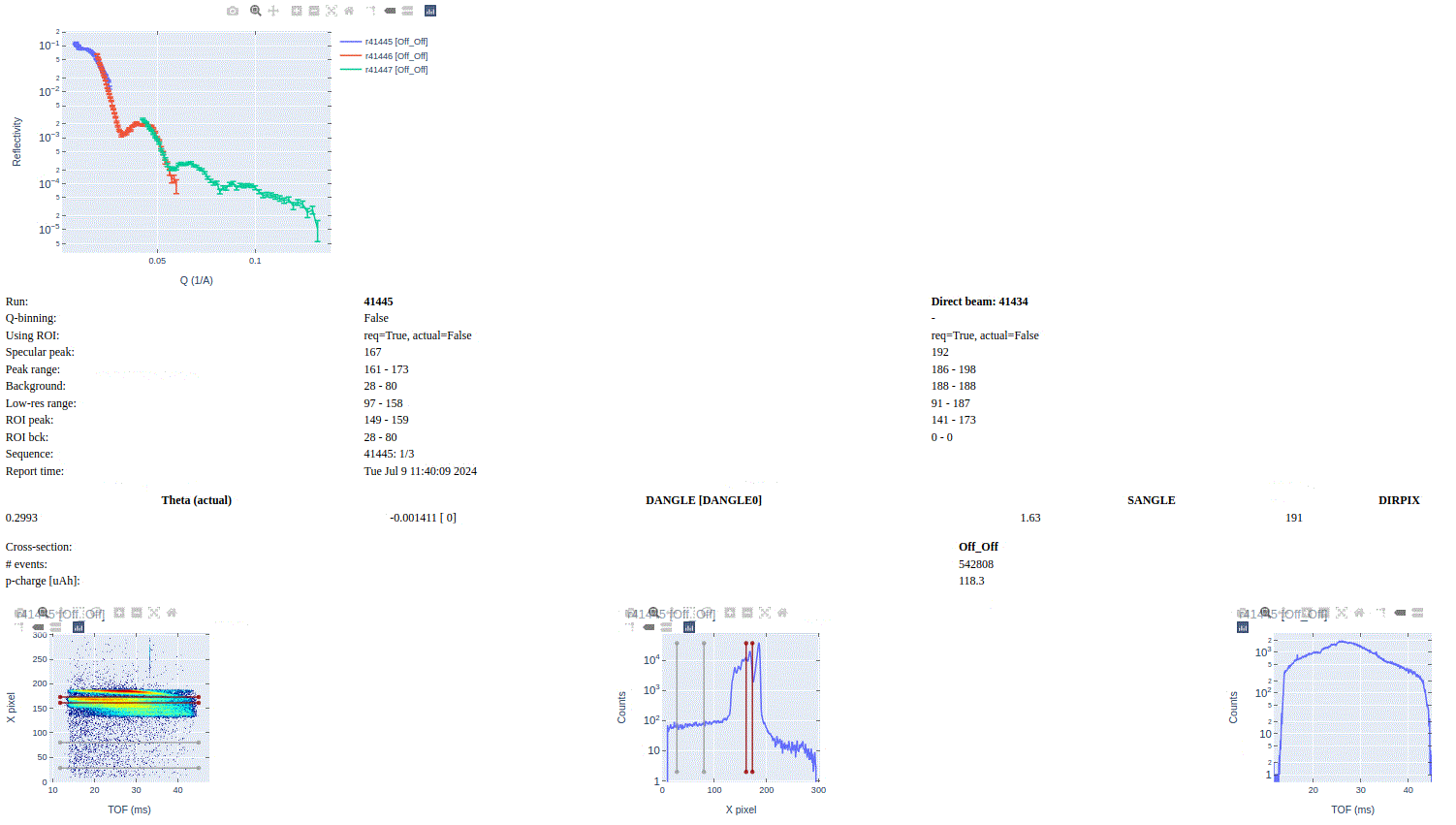

Report for the manual reduction.

Report for the manual reduction.

The report shown is HTML file /tmp/test_webform/REF_M_REF_M_41445.html, where /tmp/test_webform/ is the output directory we selected.

Notice how the report shows the superposition of reflectivity curves for runs 41445, 41446, and 41447. This will happen if reduced files for runs 41446 and 41447 are found either in the output directory /tmp/test_webform or the canonical output directory for autoreduction of runs corresponding to run 41445 which in this case is /SNS/REF_M/IPTS-21391/shared/autoreduce/. Runs 41445, 41446, and 41447 correspond to experiments taken on the same peak but with a different incidence angle.

Reduction of a Sample with Two Peaks

The webapp supports reduction of up to three peaks for the scenarios when the run contains more than one peak. This typically arise when the sample has layers with slightly different orientations with respect to the incoming beam. Thus, the layers will reflect neutrons at slightly different angles. This results in distinct intensity regions (peaks) in the detector panel.

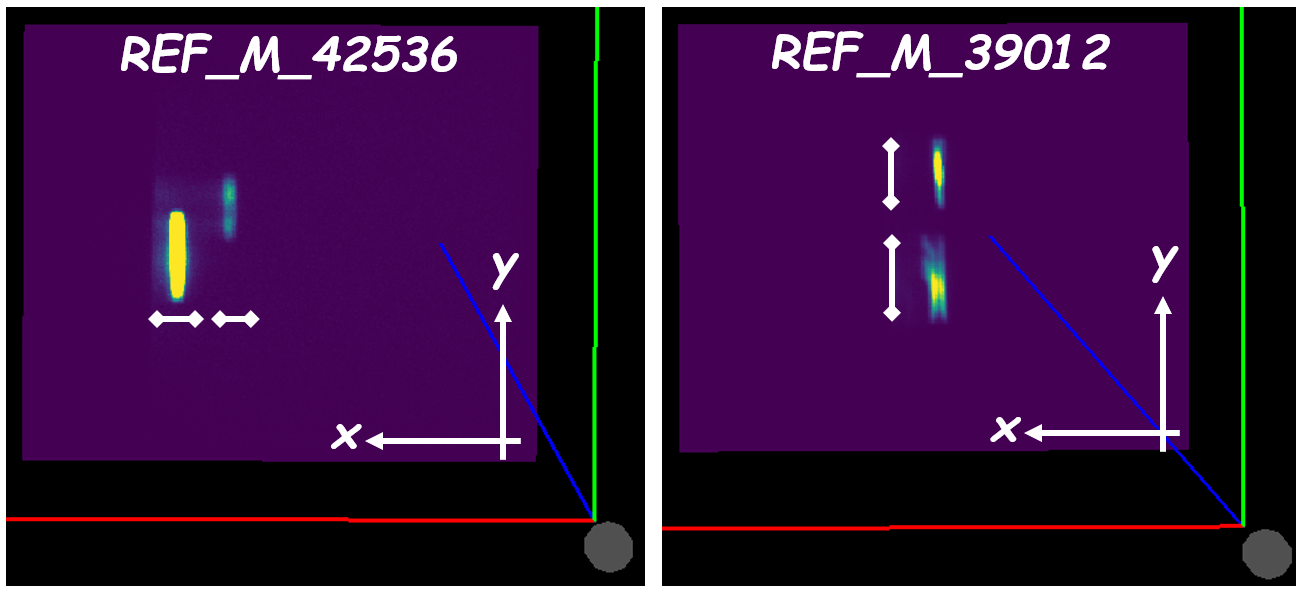

The picture below shows two runs (42536 and 39012) each one reflecting two distinct intensity regions.

../_images/two_peaks_intensities.png

For run 42536, identifying two distinct ranges along the X-axis suffices to differentiate the two peaks. For run 39012, two distinct ranges along the Y-axis suffice to differentiate the two peaks.

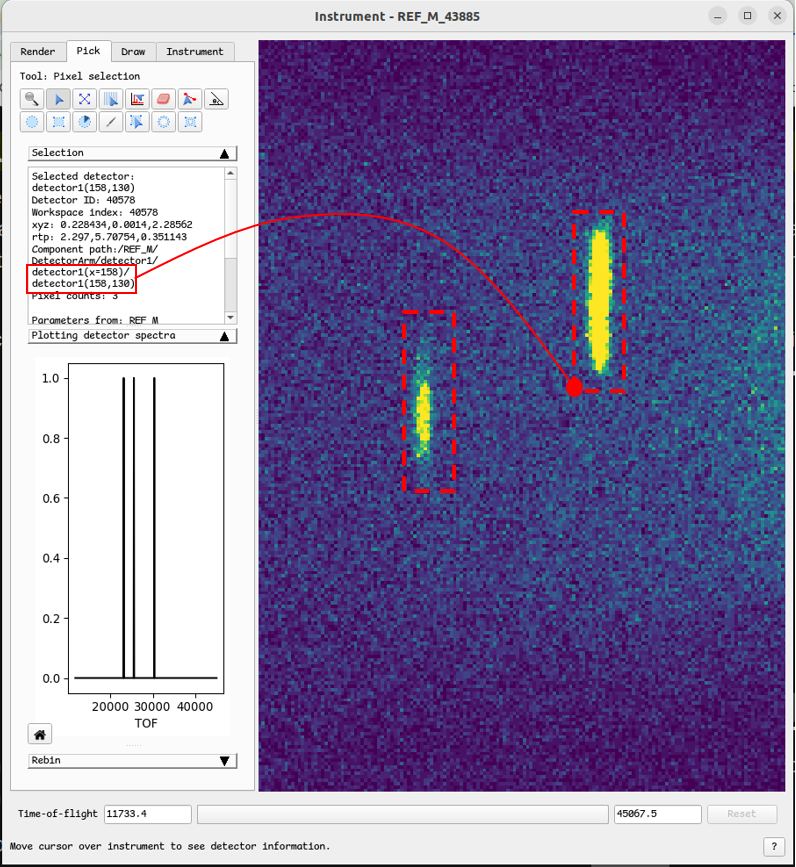

We’ll reduce the run series 43884 and 43885. These runs contain two peaks as shown in the figure below for run 43885.

two peaks in run 43885.

We should start with the first run of the series, in this case run 43884, by invoking the webapp from the terminal. Even though the two peaks are well resolved along the X-axis, we’ll also define a range along the Y-axis, also termed the low-resolution axis because the peak is spread out over many pixels along this direction.

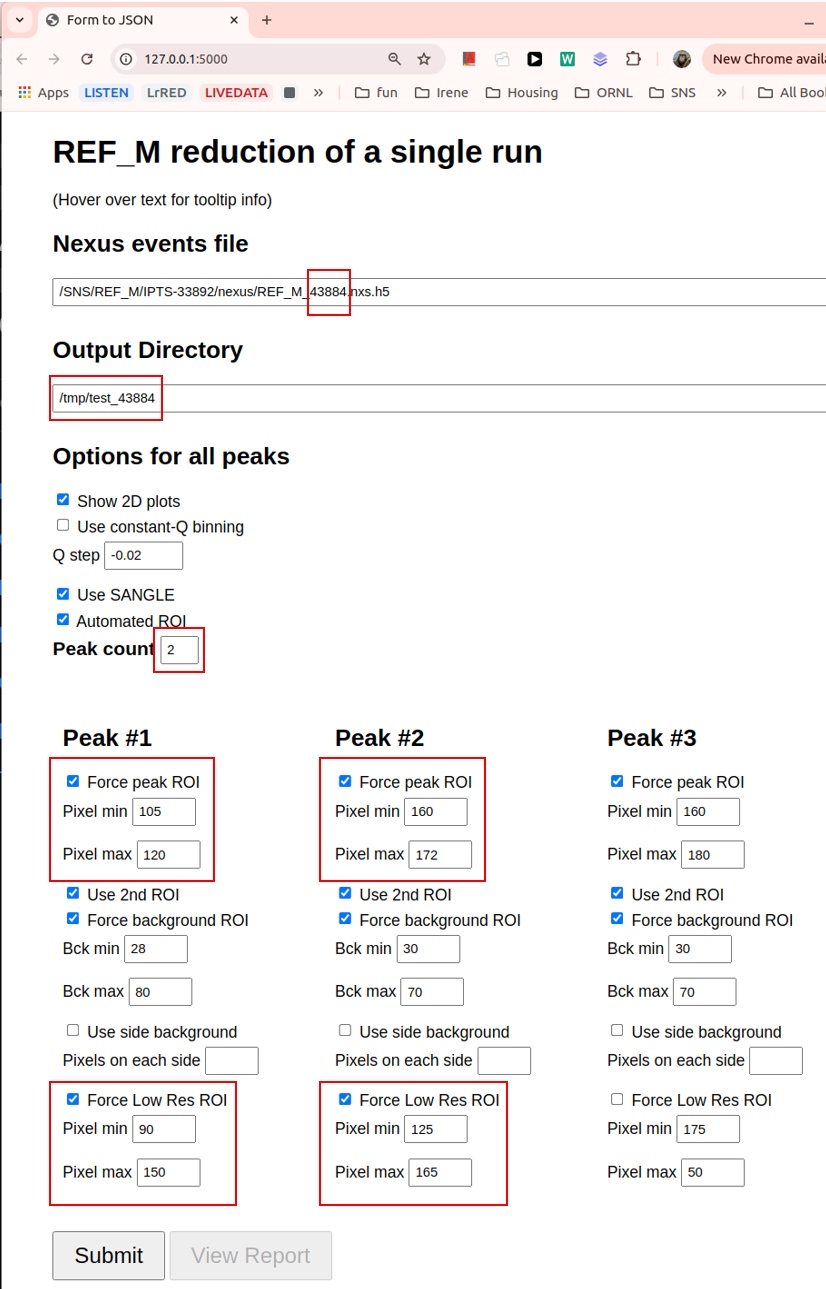

setting up the reduction.

A few things to notice in the above figure:

  • We pass the path to the events file for run 43884.

  • We set up the output directory. If the directory doesn’t exist, do create it before submitting the form.

  • We specified the peak count to two peaks.

  • For Peak #1, we specified the range along the X-axis (“Force peak ROI”) as well as the Y-axis (“Force Low Res ROI”).

  • We do likewise for Peak #2.

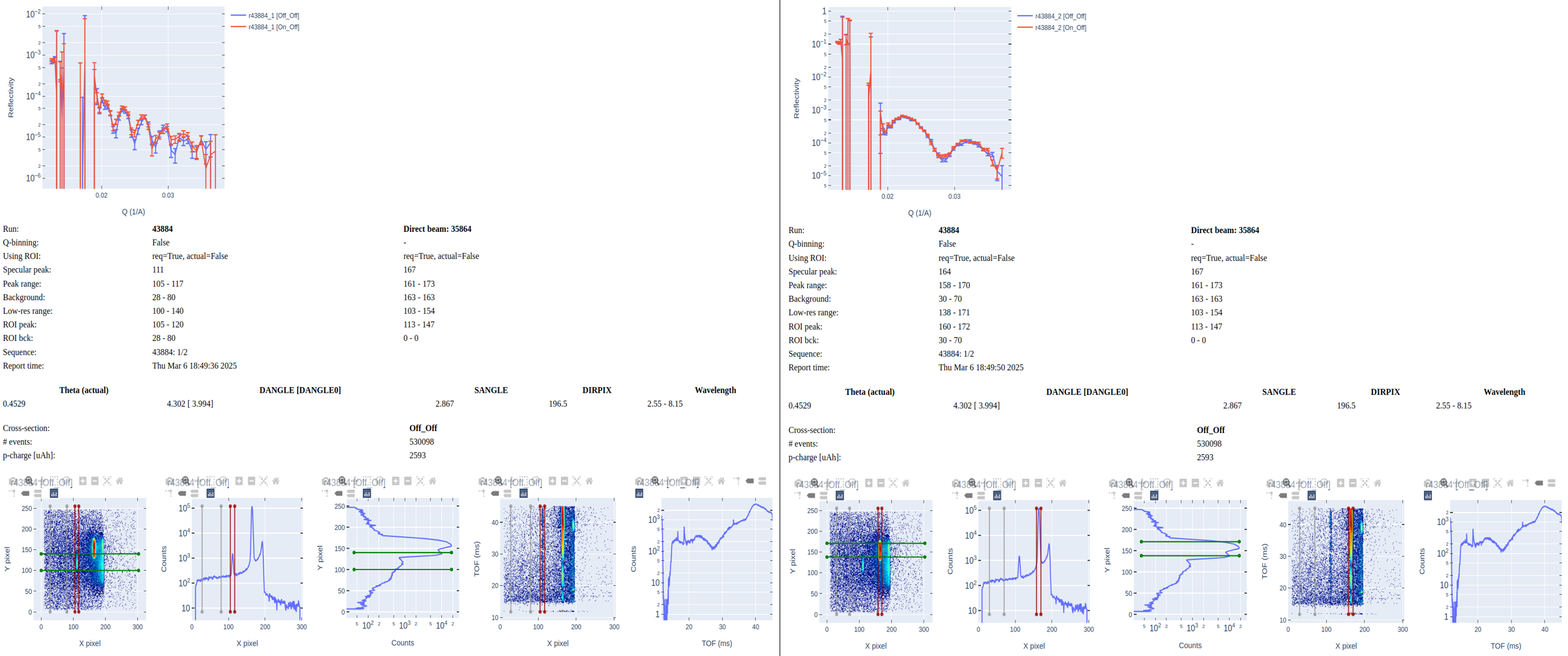

We start the reduction by pressing the Submit button. After the reduction is finished, we can view the report by pressing the View Report button:

setting up the reduction.

The report shows the reflectivity of the two cross-sections (“Off_Off” and “On_Off”) for Peak #1 (“43884_1”) and Peak #2 (“43884_2”).

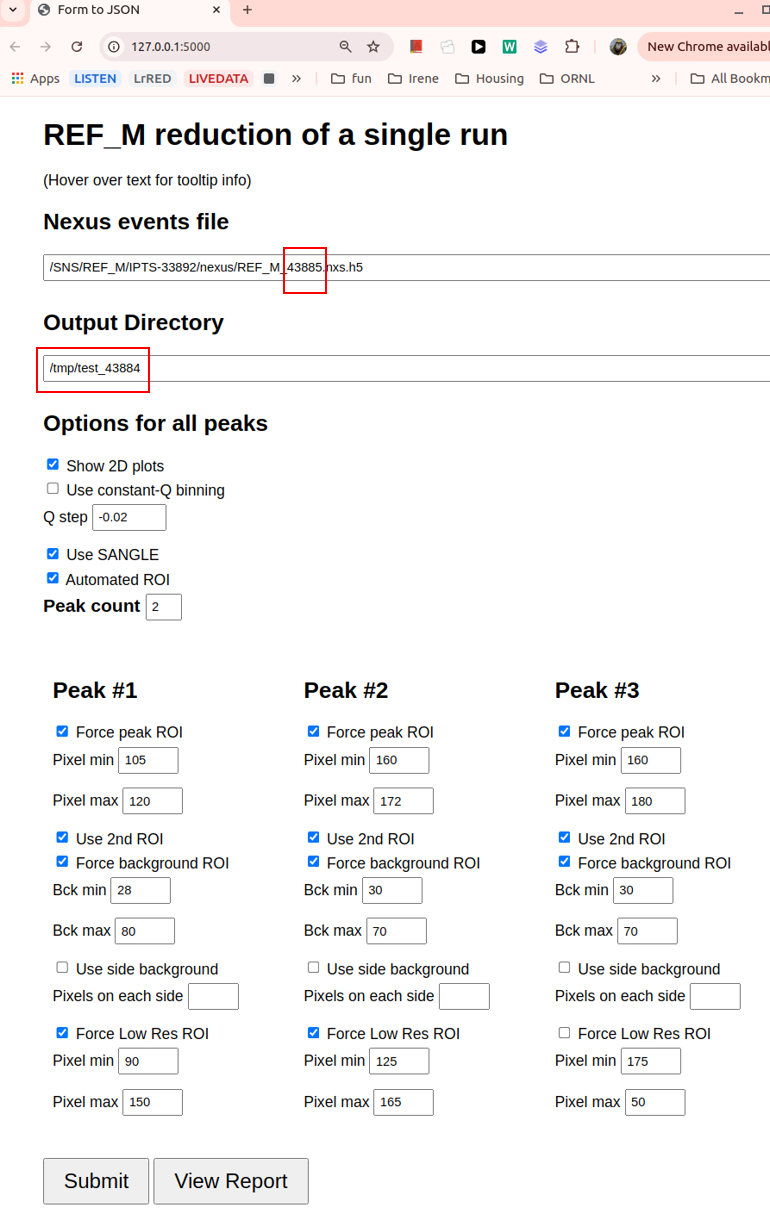

We continue by reducing the second run in the series (43885). The only change we make in the form is to pass the path to the events file for run 43885. Beforehand we made sure that the ranges for “Force peak ROI” and “Force Low Res ROI” that we used when reducing 43884 also encompass the peaks observed in run 43885. Notice that we will output the reducted data to the same directory as for run 43884. This way we’ll have all the necessary output data to stitch together the reflectivity curves of the two runs.

setting up the reduction.

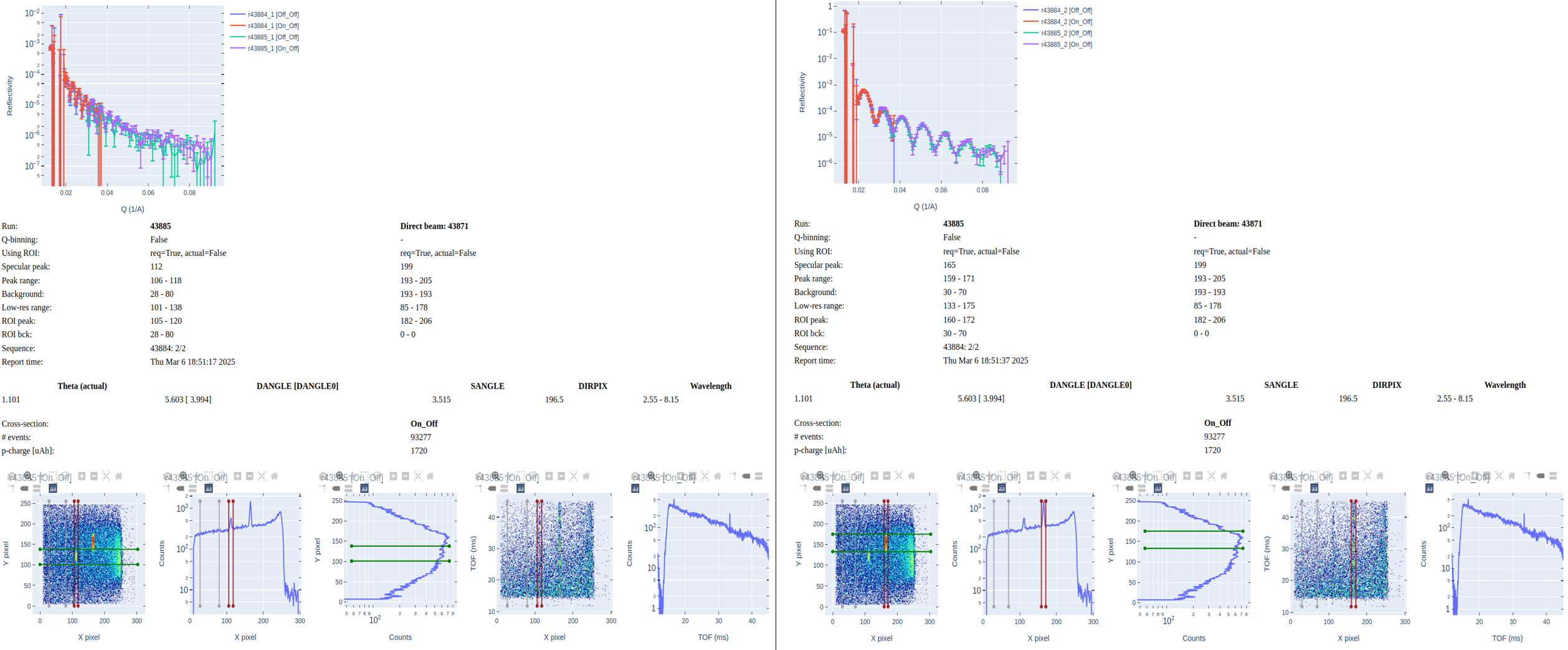

As before, we view the report by pressing the View Report button:

setting up the reduction.

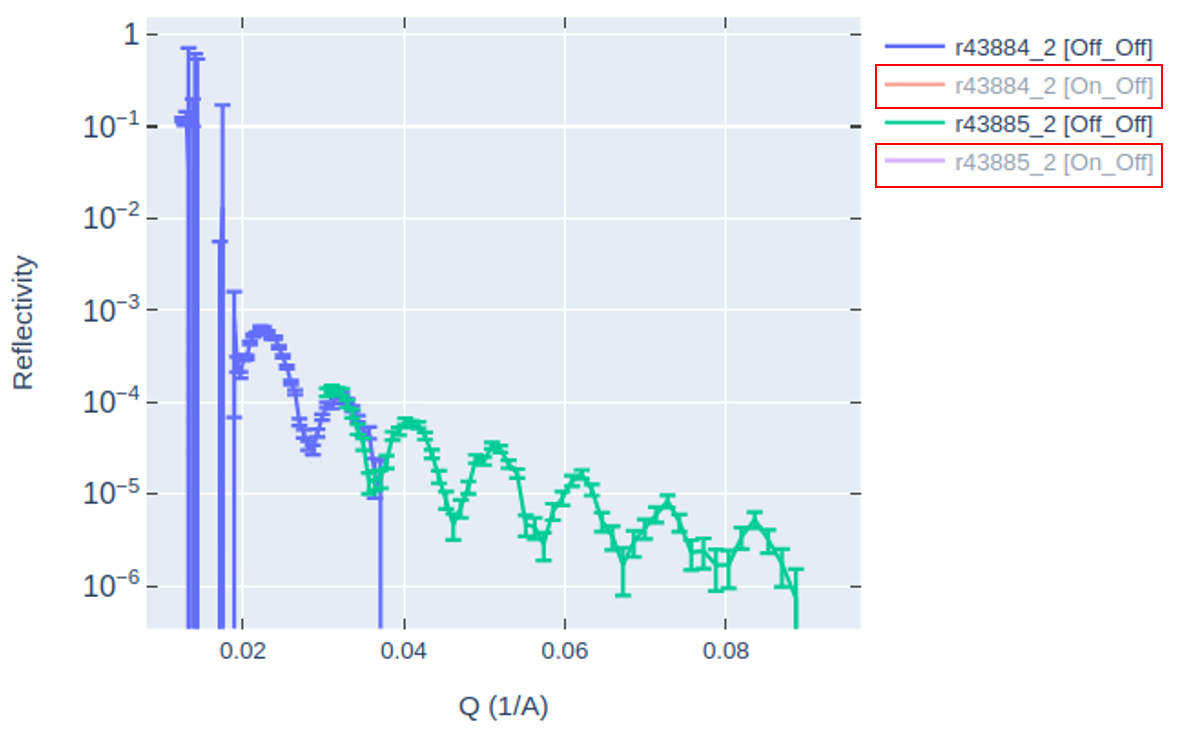

We notice in the report that reflectivity curves for the two runs are shown, stitched together. There are four curves in each plot so it can be difficult to discern the stitching for a given cross-section. You can hide one curve by clicking on the legend. In the figure below, on the legend, I clicked on “r43884_2 [On_Off]” and “r43885_2 [On_Off]” to hide them, leaving a clearer view of the stitching for the “Off_Off” cross-section.

setting up the reduction.

In the output directory, the files containing the reflectivity curves in ASCII format are REF_M_*_autoreduce.dat for individual runs and REF_M_*_combined.dat for stitched runs.

Automated Reduction

The set of reduction options available in the manual reduction is also available in https://monitor.sns.gov/reduction/ref_m/. Updating these options ensure that auto-reduction of future experiment will employ the new options. Auto-reduced files are saved under directory /SNS/REF_M/IPTS-XYZ/shared/autoreduce/, where XYZ corresponds to the IPTS number associated to whatever run number is to be auto-reduced.
